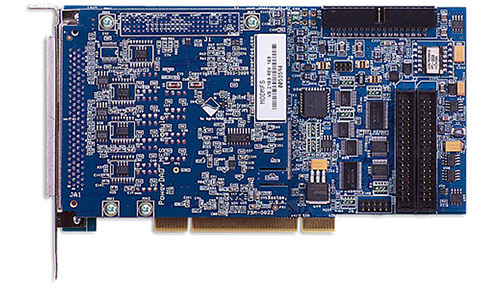

500 kS/s, 16-bit, 4SE SSH A/D PCI multifunction board

PD2-MFS-4-500/16

Features

500 kS/s, 16-bit, 4SE SSH A/D PCI multifunction board

  • For PCI bus
  • 4 single-ended simultaneous sample/hold A/D channels
  • 16-bit resolution, 500 kS/s sampling rate
  • Gains: 1, 2, 5, 10
  • Two 12-bit analog outputs; 32 digital I/O lines; three 16-bit counter/timers
  • Simultaneous operation of all subsytems
  • Stream-to-disk capability
  • Multiple boards operate in one PC
  • Calibration certificate included
  • PowerDAQ Software for Windows NT/2000/XP and Linux/RTLinux
500 kS/s, 16-bit, 4SE SSH A/D PCI multifunction board
Quantity: $4700
Add to Cart

Typically in stock for shipment in 3-4 weeks. Tariff surcharges will apply.

PD2-MFS-4-500/16

Ask a Question

500 kS/s, 16-bit, 4SE simultaneous sample & hold; two 12-bit D/As; 3 counter/timers; 32 digital I/O simultaneous sampling PCI multifunction board.

This product is Non Cancelable Non Returnable (NCNR) and cannot be cancelled and the products cannot be returned once purchased.

Note: This board is not recommended for use in new, long-term applications. Our plan is to maintain this board’s availability until at least January 31, 2028. However, unlike our DNx series availability guarantee, we cannot guarantee availability until 2028. Though we will not discontinue the board simply due to declining sales, we reserve the right to discontinue it should a key component required to build the board become unavailable.
