6-slot Military style, GigE Programmable Automation Controller (PAC) I/O Rack

UEIPAC 600-MIL

Features

  • Military/Rugged 38999 connectivity
  • 100% COTS solution
  • Supported by over 80 standard DNR-series I/O boards
  • 5 g vibration, 100 g shock, sealed to IP66
  • Dual GigE ports (control and diagnostic)
  • Designed for MIL-STD-461/810/1275 compliance
  • Extensive built-in system diagnostics
  • Simulink, Modbus TCP, OPC-UA also supported
  • No rotary cooling devices
  • Extensive software support including Xenomai, Linux RT, or VxWorks

VxWorks Features

  • Use your existing development license
  • Obtain your run-time license from WindRiver
  • Our BSP provides everything else you need including examples
  • A one-time charge for BSP regardless of the number of systems deployed

Linux Features

  • Uses standard Linux kernel or with Linux_rt preempt patch real-time support
  • Program in standard C
  • Eclipse IDE support
  • Develop on Linux PC or Windows PC in the Cygwin environment
  • SD card, SSD, and/or USB based disk
  • Uses the same API as our PowerDNA family
  • Our Linux Programmer's Toolkit is required to write programs for the UEIPAC
  • A one-time charge for the Toolkit, regardless of the number of systems deployed

Please call for delivery info

6-slot Military style, GigE Programmable Automation Controller (PAC) I/O Rack
Software/Programming: How UEI solutions are used. Hosted - Connected to a PC with Windows, Linux, QNX, VxWorks, RTX, or similar OS. Hosted also is for OPC-UA, Modbus and EtherCAT. Standalone - Controller with Linux or VxWorks OS, Simulink I/O Target or UEILogger. Available options for this product are shown in the drop down menu.
CPU Configurations:

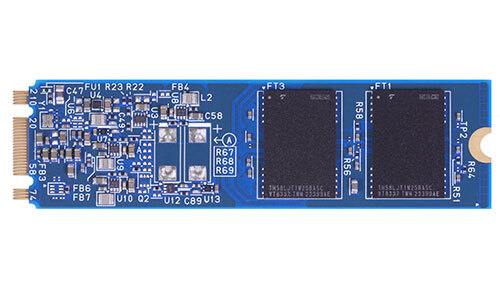

Solid State Hard Drive:
SD Card:
Software Deployment Options:
Quantity: $12305
Add to Cart

Typically in stock for shipment in 3-4 weeks. Subject to global supply chain challenges.

UEIPAC 600-MIL

Customizable & Deployed Sensor Interface Unit (SIU)
The Navy chose the UEI RACK form factor to replace the obsolete Sensor Interface Unit (SIU) on the Marine Landing Craft LCAC.
Find out why in the Full Story

The UEIPAC 600-MIL is the latest deployment of UEI’s popular RACKtangle® architecture. It is basically a smaller version of UEI’s popular DNR-MIL and offers slots for six I/O boards rather than the DNR-MIL’s twelve. Designed for use in the toughest environments, the UEIPAC 600-MIL is ideal for military and aerospace deployments. It is also ideal for a huge assortment of commercial applications including oil drilling platforms and refineries, heavy machinery, outdoor test stands, and any other I/O application that will be exposed to the elements. All connectivity is through ROHS compliant 38999 connectors.

Electronically, the UEIPAC 600-MIL is identical to the standard DNR Series RACKtangle except for hold-up and protection circuitry on the power supply inputs to meet MIL-STD-1275/704.) This means the UEIPAC 600-MIL uses standard DNR-series boards (e.g. DNR-AI-217 or DNR-1553-553). With over 80 unique I/O boards and 6 slots available there’s sure to be a configuration matching your application.

The new UEIPAC 600-MIL is designed to meet the most commonly required elements of MIL-STD-461 and -810 and is sealed to at least IP66/NEMA6 standards. All this is housed in a compact 10.6" (wide) x 7.0" (tall) x 6.4" (deep) chassis, weighing approximately 16 pounds and typically consuming less than 30 Watts. Heat transfer from the internal electronics to the external chassis is designed such that no fans or rotary cooling is required. The lack of fans maximizes MTBF and mechanical reliability. All internal printed circuit boards are conformal coated to ensure the highest reliability. Heat sink style fins on the top and bottom of the unit ensure the unit will meet its temperature specifications without any forced air cooling, though the unit is also suitable for use with a cold plate if appropriate.

The UEIPAC is an embedded standalone system – supporting both VxWorks and Linux – that runs your application. It's quick to install the PAC and run your first program. Precompiled examples are provided. Your Linux/ VxWorks application runs directly on the UEIPAC. There is no need for a separate host PC, though you can certainly connect one in a monitoring or supervisory role. This allows smaller, faster, more reliable, and higher performance systems. It also eliminates the cost of a dedicated host PC and guarantees long-term availability of the identical hardware. This is critical when certifying products through CE or FDA, etc. In this mode, the DNR-MIL-6 can run fully stand-alone or may be linked to a SCADA host via the Ethernet.

LINUX Deployments

Your application runs as a regular Linux process giving you access to the standard POSIX API provided by the GNU C runtime library (glibc) as well as any other library that can be compiled for Linux (for example: libxml, libaudiofile…). We also support the Linux_rt preempt patch for real-time support.

To develop programs for the UEIPAC, you will need to purchase a copy of the UEIPAC Linux TK programmers toolkit. The toolkit provides the various items needed to write applications for the UEIPAC. Regardless of the number of cubes you deploy, you need only purchase one programming toolkit. UEIPAC is an embedded Linux-based system with no graphical interface. It is very good at network connectivity, which makes it possible to create remote graphical user interfaces (also known as HMI Human-Machine-Interface).

VxWorks Deployments

You may now take advantage of all the hardware advantages of UEI's popular UEIPAC chassis and continue to develop your applications in VxWorks. This powerful combination provides hard real-time performance, an extremely robust and reliable operating system, allows you to develop your application in a familiar environment and last, but not least, allows you to preserve a great deal of previously written code! To deploy a UEIPAC application running VxWorks you'll need the following.

  1. A UEIPAC (any version)
  2. The "UEIPAC VxW BSP". You only need to purchase the BSP once, regardless of the number of systems you deploy
  3. A VxWorks development system (from Wind River)
  4. A VxWorks run-time license for each UEIPAC deployed. (also purchased from Wind River )

Additional information on UEI and UEIPAC can be found in our Software Support section.

The RACKtangle chassis is available in different deployment options including: PowerDNA, PAC (Programmable Automation Controller), Simulink/RTW Target, Modbus TCP Interface and OPC Unified Architecture Interface.
